Innovascope develops and markets active materials used in energy storage and conversion. Currently we provide the so-called plasma black as well as metallic powders with core-shell structure

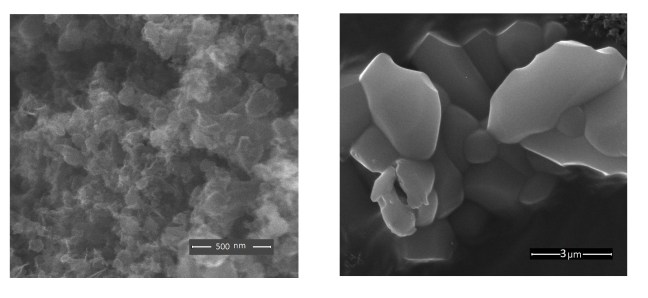

Left: Plasma Black 100-3758: This particular plasma black is produced via cracking of methane in plasma reactor. This product does not have as high surface area ( only 100 m2/g) but the interlayer distance is quite high and has a value of 0.3758 nm. Right, SEM micrograph of Plasma Black M300, see the reference below for more detail

Three grades of plasma blacks(PB) are currently avalable;
– Plasma Black-300,
– Plasma Black-200
– Plasma Black -100
Here the last three digits  refer to the surface area of the PB in units of m2/g. We can adjust the surface area, more importantly we can also adjust the interlayer distance between the graphitic layers .

We can also provide metallic particles with graphitic shells or oxide shells to be used as support material for catalysts and other purposes.

Publications

1-Continuous synthesis of graphite with tunable interlayer distance Gülhan Çakmak, Tayfur Öztürk, Diamond & Related Materials 96 (2019) 134–139

2- Carbon coating of magnesium particles, Burak Aktekin, Cavit Eyovge, Tayfur Öztürk,  Journal of Alloys and Compounds 720 (2017) 17-21.

3- Nafion Coated Mg50Ni50 and (La,Mg)2Ni7 Negative Electrodes for NiMH Batteries, Cavit Eyovge and Tayfur Öztürk, Journal of The Electrochemical Society,165(10) A2203-A2

4-Carbon Encapsulated Silicon Nanoparticles as Anodes for Lithium IonBatteries P. Livan, B. Miser, S. Altınok, C. Eyövge, M. K. Aydınol and T. Öztürk, ECS Transactions, 77 (11) 373-382 (2017)


5-Rhodium(0), Ruthenium(0) and Palladium(0)nanoparticles supported on carbon-coated iron:Magnetically isolable and reusable catalysts forhydrolytic dehydrogenation of ammonia borane, Serdar Akbayrak Gülhan Çakmak, TayfurOzturk and Saim Ozkar, Int. J. Hydrogen Energy, 46 221, 13548-13560

6-Oxide coated nickel powder as support for platinum(0) nanoparticles: Magnetically separable catalysts for hydrogengeneration from thehydrolysis of ammonia borane.Serdar Akbayrak Gülhan Çakmak, TayfurOzturk and Saim Ozkar, J of Alloys and Compounds, 1002, 2024, 175199
